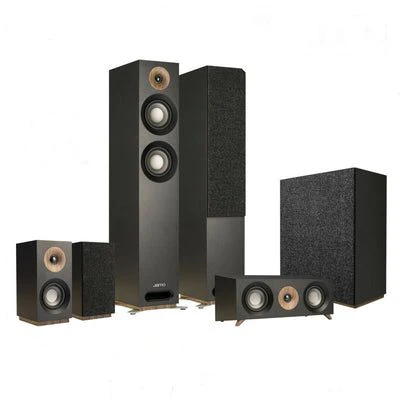

Modern design meets high performance. S 807 Dolby Atmos ready home cinema system delivers incredible acoustic performance with an elegant design.
COMPACT, YET POWERFUL
– Front-firing tube port allows for versatility in placement (in cabinets, against walls, etc.) and enhanced, cleaner bass response.
– Studio 8 WaveGuide technology focuses high frequencies for dynamic, powerful sound.
BEAUTIFUL, CONTEMPORARY DESIGN
– Fully magnetic grilles – no mounting holds or push pins – for a clean, minimalist front baffle design.
– Large, woven pattern linen grilles create visual interest with heavy texture and come in two unique colors – heather gray with white models, and charcoal gray for black or walnut finishes.
– Wood grain accents around the tweeters, at the bases and feet give a handcrafted, natural look.
– A 3″ taper on the cabinet accentuates the slim design aesthetic of Studio 8 speakers.
DOLBY ATMOS READY
– Dolby Atmos ready speakers deliver sound that comes alive from all directions, including overhead, to fill any room with astonishing clarity, detail and depth.
Klipsch R-100SW
The Klipsch R-100SW subwoofer delivers incredibly deep bass via a 10″ front-firing driver featuring a spun-copper IMG woofer and all digital amplifier.
Type: Floorstanding speaker
Frequency Response: 42Hz – 26kHz (+/- 3dB)
Sensitivity: 90dB (2.83V @ 1m)
Power Handling: 100W / 200W
Impedance: 8 Ohm
High Frequency Driver: 25mm (1”) Soft Dome Tweeter
Low Frequency Driver: 2 x 127mm (5”) Polyfiber Woofers
Crossover Frequency: 2kHz
Speaker Enclosure: MDF
Enclosure Type: Bass Reflex via Front Firing Slot Port
Inputs: Single Binding Posts (Main / Height)
Dimensions: 915mm x 191mm x 252mmS 801
Type: Bookshelf speaker
Frequency Response: 76Hz – 26kHz (+/- 3dB)
Sensitivity: 85dB (2.83V @ 1m)
Power Handling: 60W / 120W
Impedance: 8 Ohm
High Frequency Driver: 25mm (1”) Soft Dome Tweeter
Low Frequency Driver: 102mm (4”) Polyfiber Woofer
Crossover Frequency: 2kHz
Speaker Enclosure: MDF
Enclosure Type: Bass Reflex via Rear Firing Slot Port
Inputs: Single Binding Posts
Dimensions: 285mm x 156mm x 163mmS 81 CEN

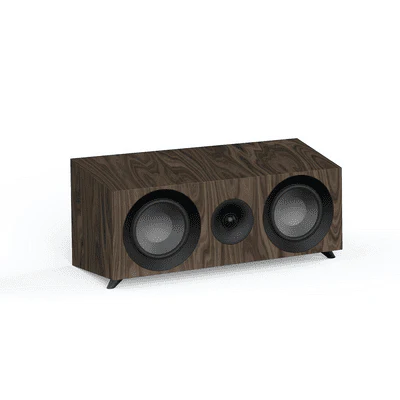

Type: Center speaker
Frequency Response: 71Hz – 26kHz (+/- 3dB)
Sensitivity: 86dB (2.83V @ 1m)
Power Handling: 60W / 120W
Impedance: 8 Ohm
High Frequency Driver: 25mm (1”) Soft Dome Tweeter
Low Frequency Driver : 2 x 102mm (4”) Polyfiber Woofers
Crossover Frequency: 2kHz
Speaker Enclosure: MDF
Enclosure Type: Bass Reflex via Rear Firing Slot Port
Inputs: Single Binding Posts
Dimensions: 184mm x 435mm x 220mmKlipsch R-100Sw
Frequency Response: 32Hz – 120Hz +/- 3dB
Maximum acoustic output: 112 dB
Amplifier type: All digital
Amplifier Power: 150W/300W
Amplifier Features: Volume, Low-pass, 0/180 phase,AutoPower On
Woofer: 10” high excursion spun-copper IMG woofer
Enclosure Material: MDF
Enclosure Type: Bass-Reflex via rear-firing port
Inputs: Line level/LFE RCA jacks
Height: 14.5” (368 mm)
Width: 12.5” (318 mm)
Depth: 16.4” (417 mm)
Weight: 24 lbs (10.9 kg)
